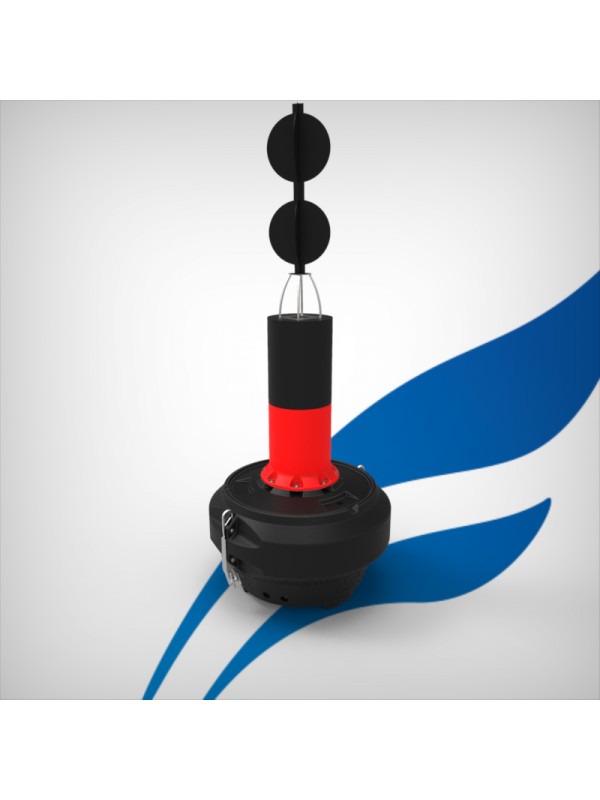

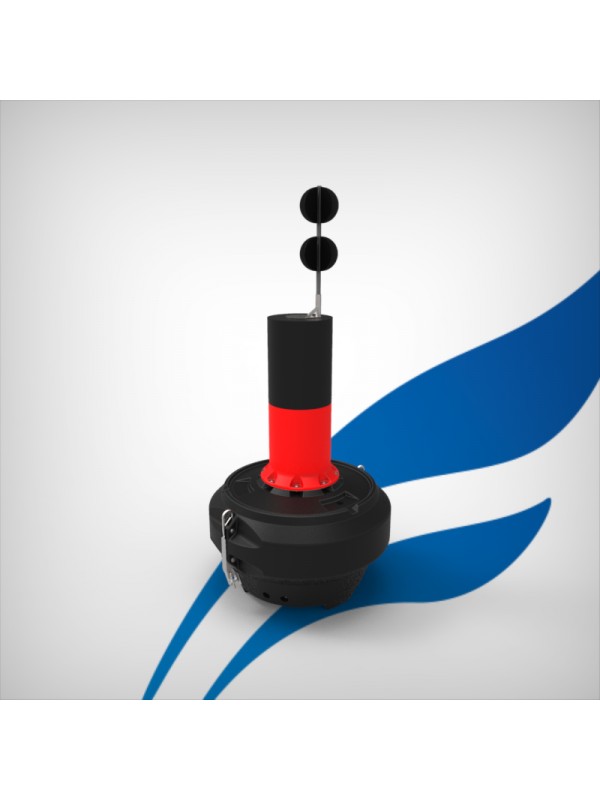

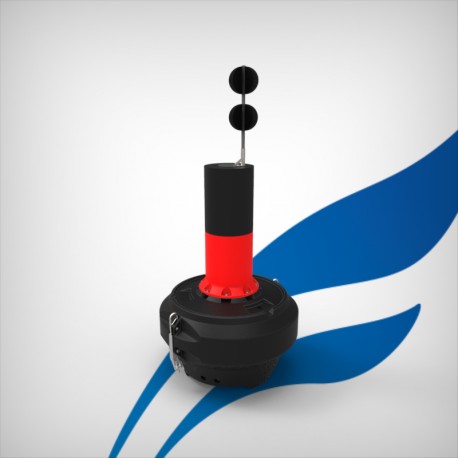

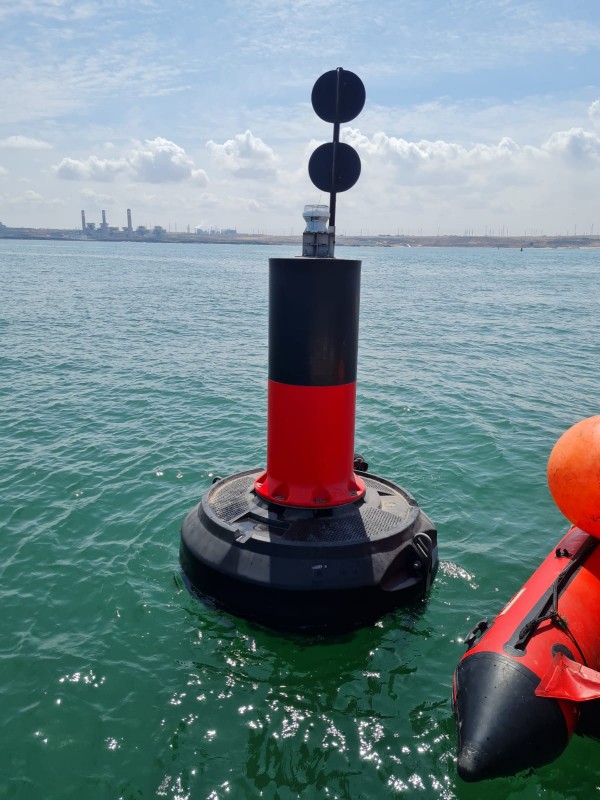

FLC1800 Isolated danger buoy

New product

When conditions can be severe the FLC1800 offers an efficient and reliable solution: polyethylene shell, foam, radar reflector, 2 galvanized steel lifting and mooring points, cast iron ballasts, removable mast, topmark.

Optional equipment: Lanterns

The FLC1800 will increase the confidence in maritime markup while keeping budget low.

More details

  • PVC & Polyethylene
  • Powder Coated Aluminium

Add to wishlist

Data sheet

Diameter1800 mm
Height (without equipment)2710 mm
Volume1544 l
Draught560 mm
Freeboard521 mm
Mast1554 mm
Weight with ballast432 kg
Submergence21 kg/cm
Visible area2,9 m²
Focal plane2305 mm with Carmanah M650, 2355 mm with Carmanah M850, 2460 mm with Carmanah M860

More info

HIGH QUALITY MATERIALS

Structure, Lifting and Mooring Points: S235 galvanized steel
Float and mast: UV-stabilized Polyethylene medium density
Foam: Polyurethane 40 kg/m³
Colors: Pigments matching IALA specifications directly integrated into the polyethylene during rotational moulding for no painting ever.
Ballasts: Cast Iron
Topmark : Rigid PVC & Nylon or Powder coated aluminium
Radar Reflector: Aluminium 5083/5086 marine grade
Eco friendly: Recyclable polyethylene. Heavy metal free. No ecological damages

RANGE OF USE

Current: Up to 6 knots
Mooring chain (recommended): Open long link chains 5xD ND30 and ND35

RECOMMENDED LANTERNS

All models are LED self-containing lanterns, manufactured by Carmanah (SABIK).

Available in Red, Green, White and Yellow according to the specification of each buoy.

M650H: UP TO 4 NAUTICAL MILES

The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more

Connect to Carmarah website for all technical specifications & complete documentation

M850 60X WIDE: OVER 7 NM (3-6 NM ALL COLOURS)

This high-efficiency, compact lantern is suitable for use in most solar locations. The M850 is over 30% more efficient than previous generation lanterns and is capable of an average 3 to 6 NM range with the ability to reach over 7 NM.

Connect to Carmarah website for all technical specifications & complete documentation

M860 96E WIDE : UP TO 10 NM (3-6 NM ALL COLOURS)

The M860 LED Marine Lantern is a premium, full-featured lantern suitable for achieving longer ranges in challenging insolation locations. Average range is 3 to 6 NM with the ability to reach up to 10 NM.

Connect to Carmarah website for all technical specifications & complete documentation

INFORMATION ON TOPMARKS

Two topmarks options are available for the FLC1800

Powder coated aluminium topmarks
Brush type in Rigid PVC & NylonPowder Coated Aluminium

INFORMATION ON MOORING DESIGNS

Calculate your mooring line designs with the CALMAR software.

A 3 steps, easy to use tools for the mooring lines of all FullOceans buoys.

LEARN MORE
