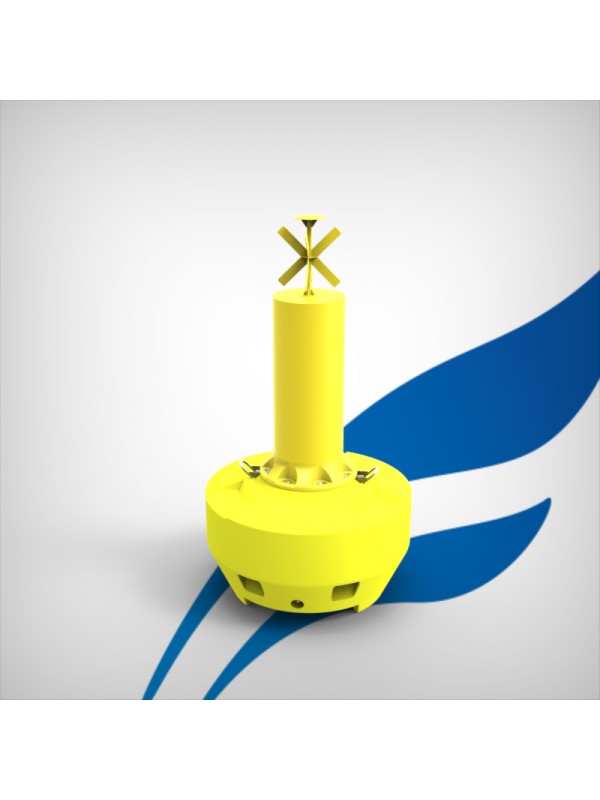

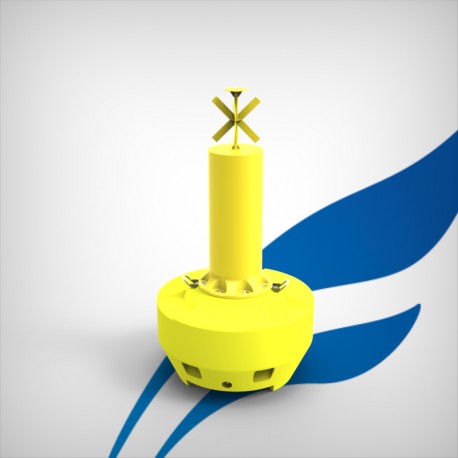

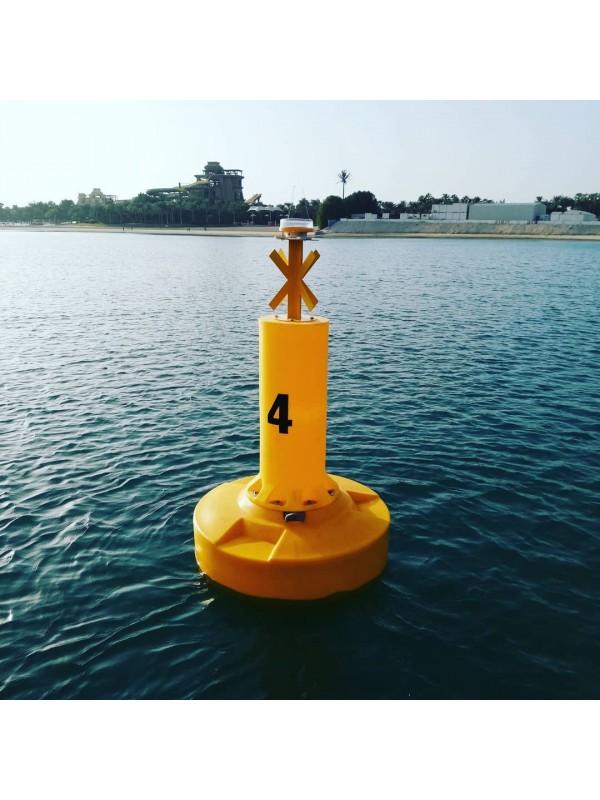

FLC1200 Special mark buoy

New product

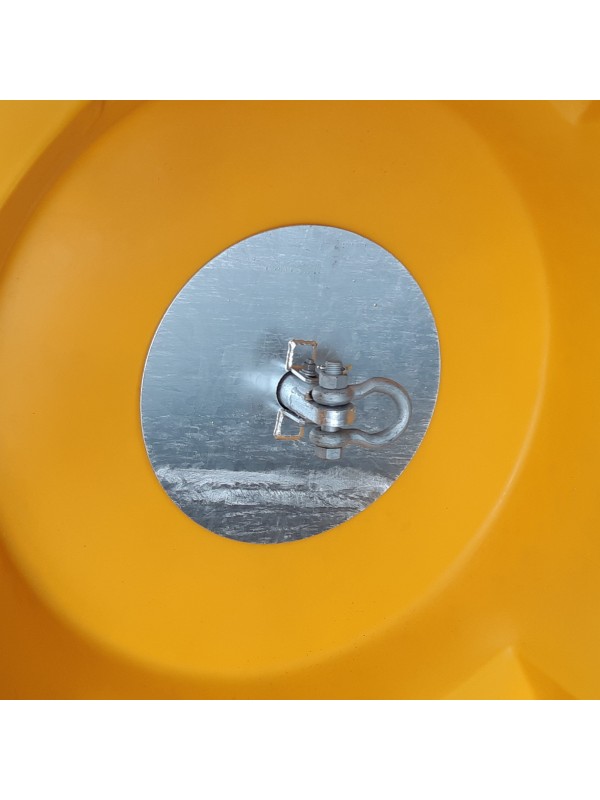

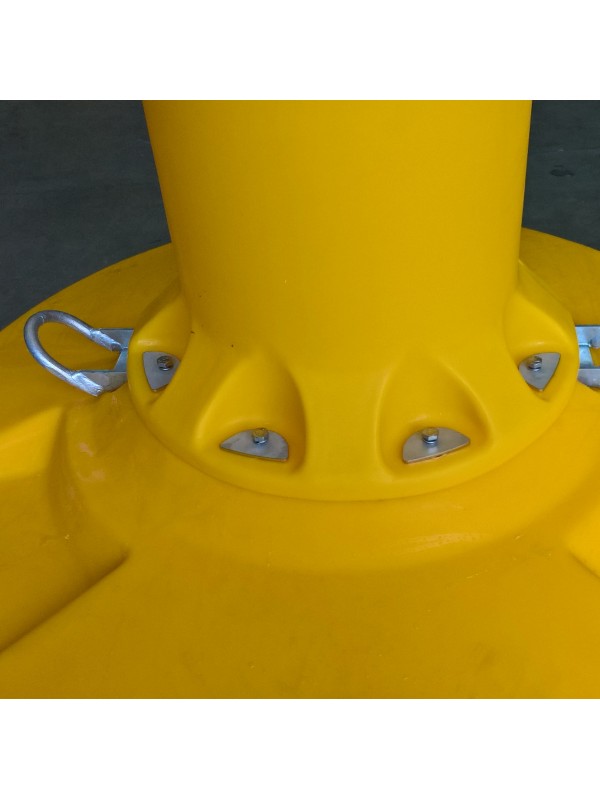

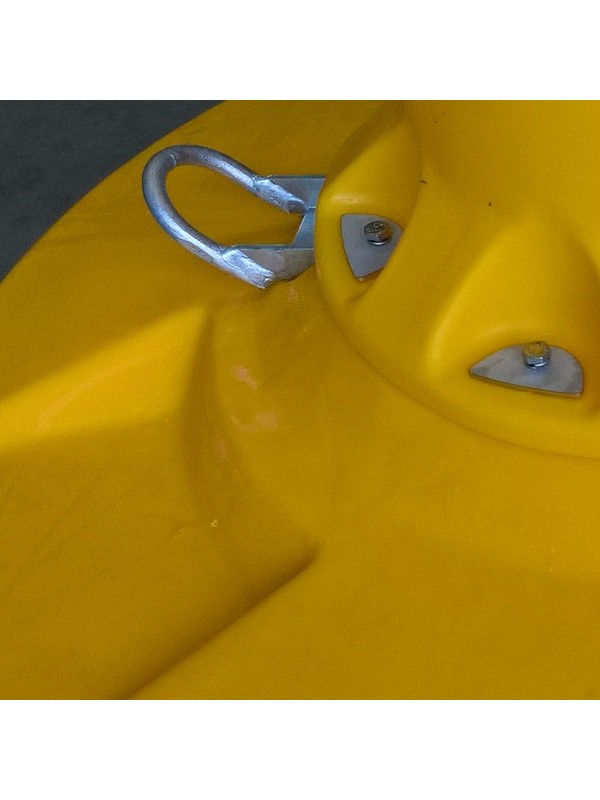

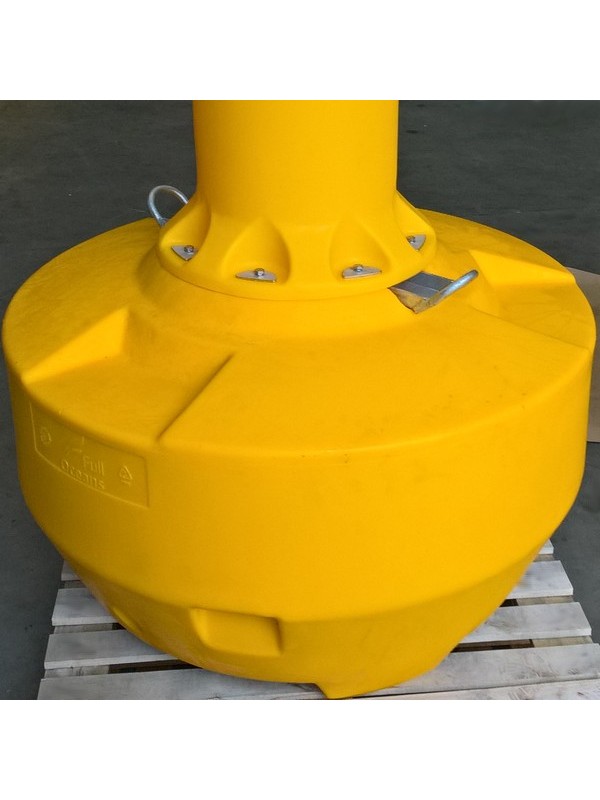

Your best ally for special mark buoys, the FLC1200 has optimized performance regarding its small volume and benefits from FullOceans’ latest technologies: polyethylene shell, foam, 2 lifting points and 1 galvanized steel mooring eye, lifting handles, cast iron ballasts, removable mast, St Andrew cross.

Optional equipment: Marine lanterns.

More details

1 114,34 € tax excl.

  • Cylindric

Add to wishlist

Data sheet

Diameter1200 mm
Height (without equipment)1775 mm
Volume570 l
Draught290 mm
Freeboard435 mm
Overall Height (with topmark)2203 mm
Mast1050 mm
Weight with balast122 kg
Submergence11 kg/cm
Visible area1,1 m²
Focal plane1953 mm with Carmanah M550, 2058 mm with Carmanah M650H

More info

HIGH QUALITY MATERIALS

Structure, Lifting and Mooring Points: S235 galvanized steel
Float and mast: UV-stabilized Polyethylene high density, Icorene 3575 PE
Foam: Polyurethane 40 kg/m³
Colors:Pigments matching IALA specifications directly integrated into the polyethylene during rotational moulding for no painting ever.

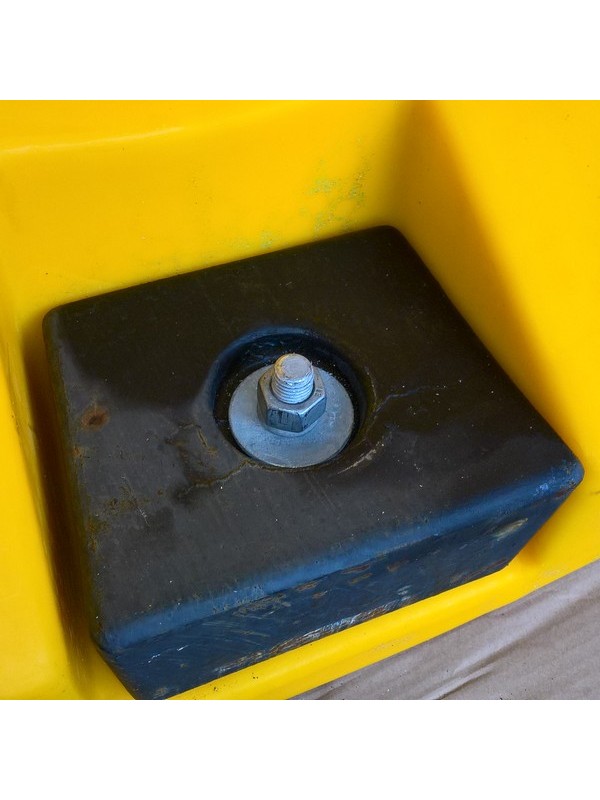

Ballasts: Cast Iron
Topmark St Andrew cross: Aluminium 5083/5086 marine grade
Eco friendly: Recyclable polyethylene. Heavy metal free. No ecological damages

RANGE OF USE

Current: Up to 4 knots
Mooring chain (recommended): Open long link chains 5xD ND16, ND20 and ND25

RECOMMANDED LANTERNS

All models are LED self-containing lanterns, manufactured by Carmanah (SABIK).

Available in Red, Green, White and Yellow according to the specification of each buoy.

M550: PRIVATE AID-TO-NAVIGATION, UP TO 3 NM

The M550 one to three nautical mile range marine lantern leverages custom optics, high-efficiency solar panels, and premium materials to deliver 15 times the brightness and three times the range of its M502 predecessor. At just 0.8 lb (0.37 kg) and 2.2 inches (56 mm) high, the unit is the most efficient, small-format solar marine lantern on the market.

Connect to Carmarah website for all technical specifications & complete documentation

M650H: UP TO 4 NAUTICAL MILES

The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more

Connect to Carmarah website for all technical specifications & complete documentation

INFORMATION ON MOORING DESIGNS

Calculate your mooring line designs with the CALMAR software.

A 3 steps, easy to use tools for the mooring lines of all FullOceans buoys.

LEARN MORE

Accessories

Download

FLC1200 Technical Datasheet

Detailed specifications of the FLC1200 including materials, drawings, 3D pictures, Photos, ...

Download (1.14M)
