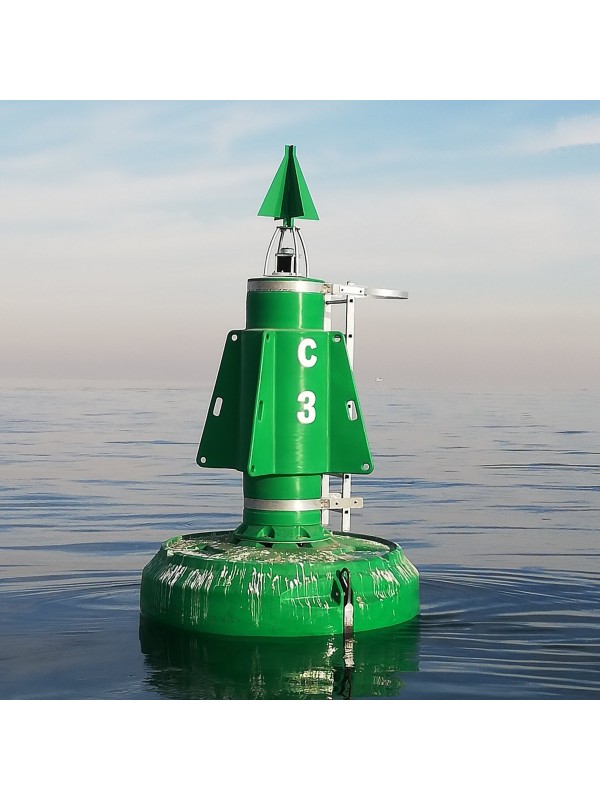

FLC2200 Lateral marker buoy - High visibility Vergrößern
Zurück Weiter

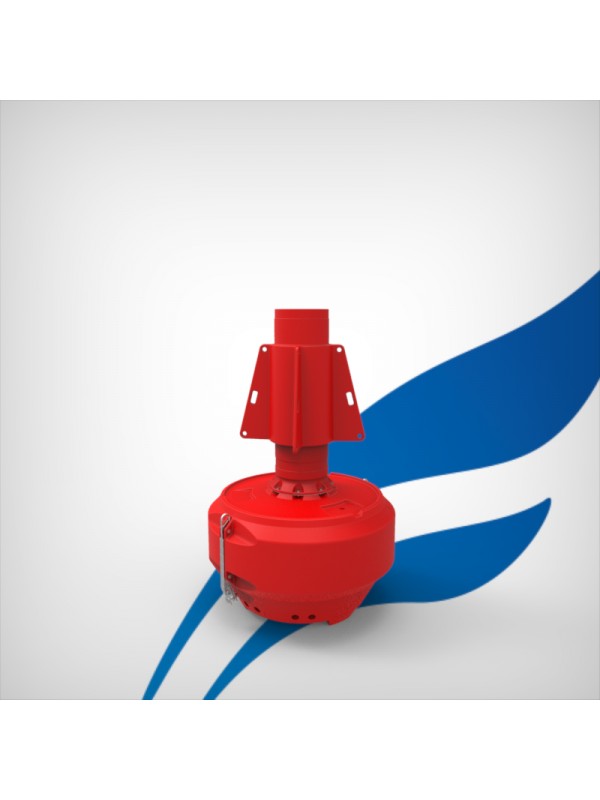

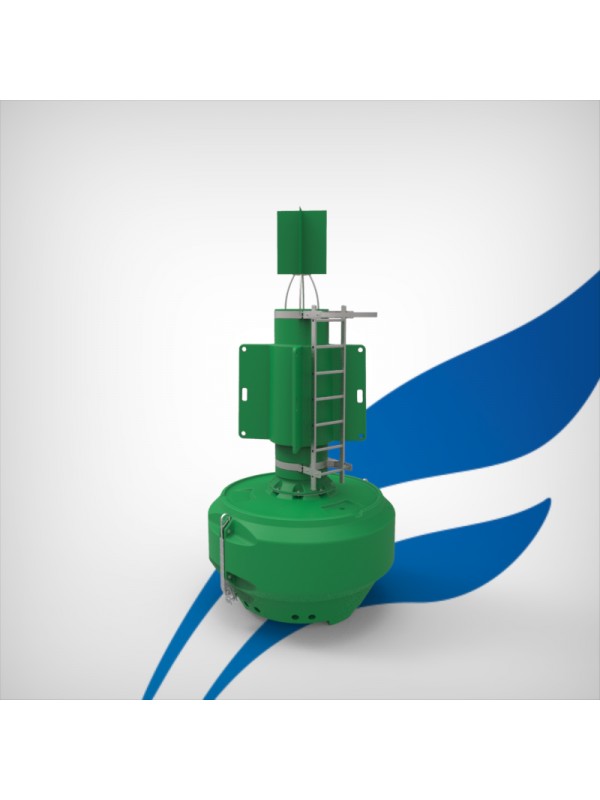

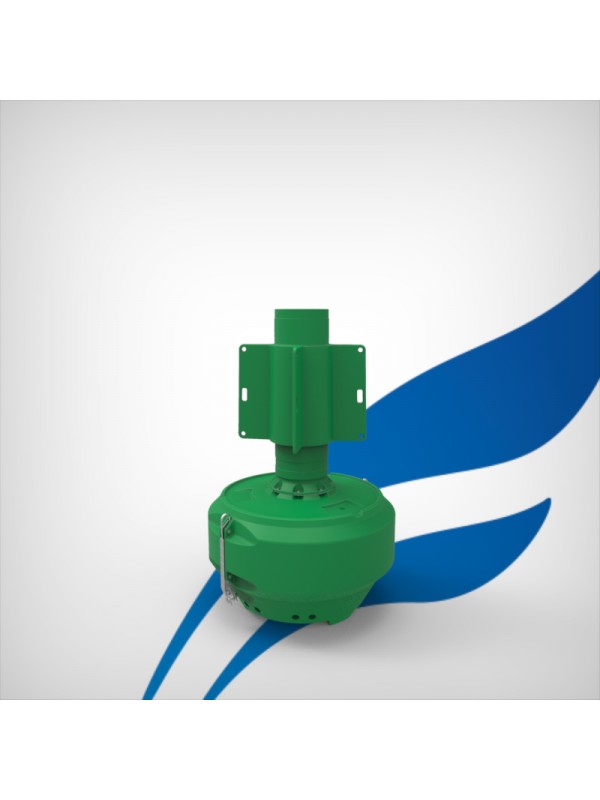

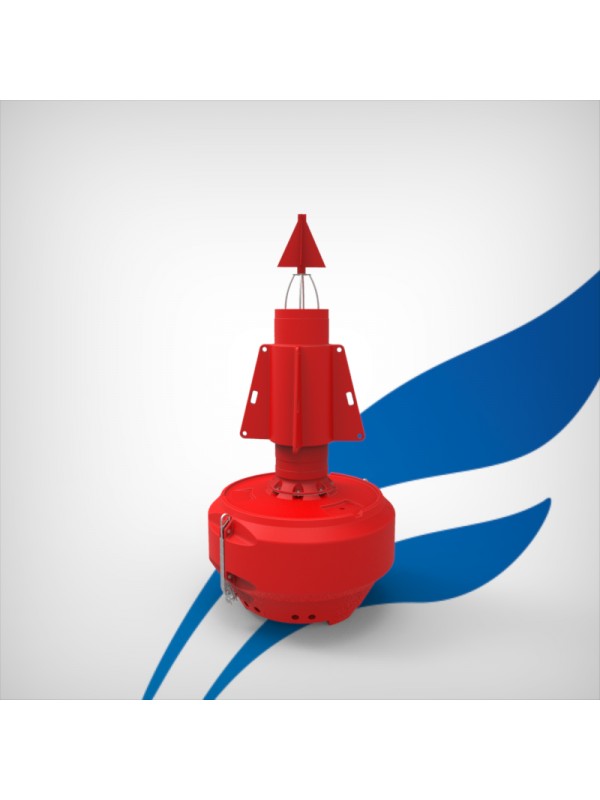

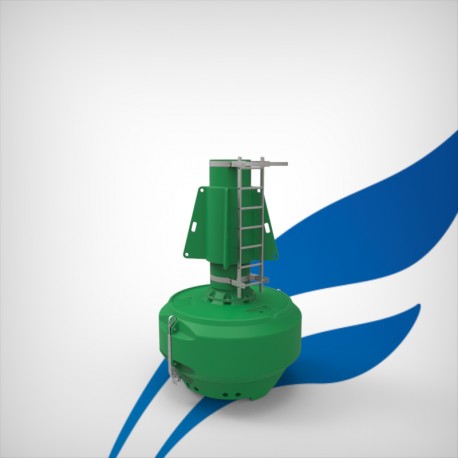

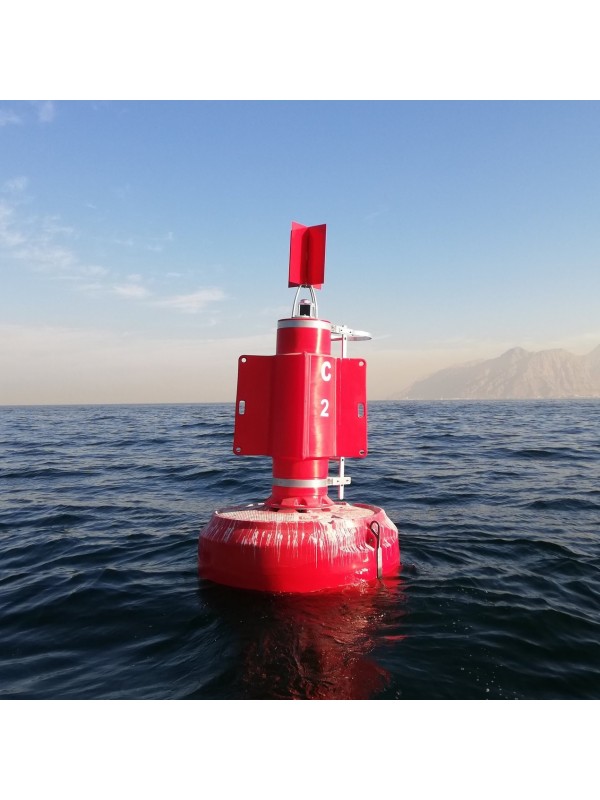

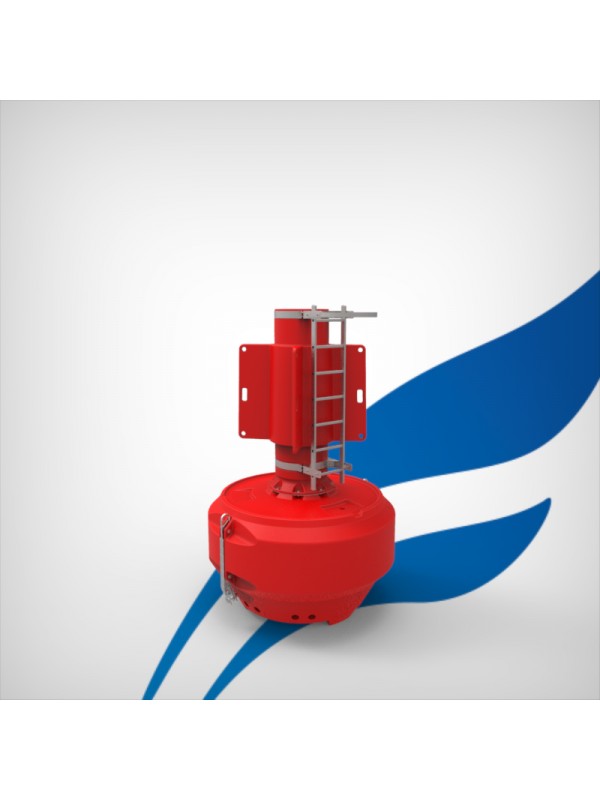

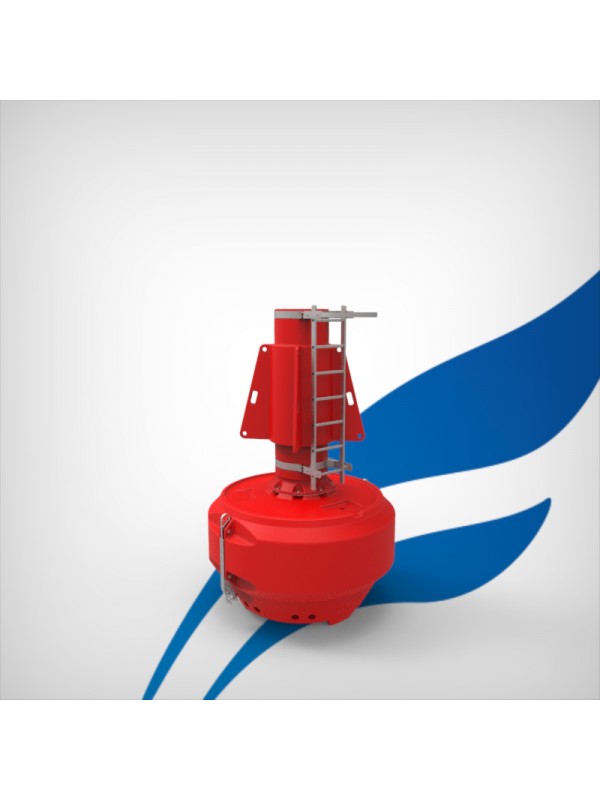

FLC2200 Lateral buoy - High visibility

Neuer Artikel

For the most exposed conditions the FLC2200 will meet the requirements of most projects. The FLC2200 characteristics and prices will surprise the most demanding experts and purchaser: polyethylene shell, foam, radar reflector, 2 galvanized steel lifting and mooring points, cast iron ballasts, removable mast, high visibility daymark.

Optional equipment: Lanterns, service ladder, topmark.

Mehr Infos

  • Starboard
  • Port
  • Without
  • PVC & Polyethylene
  • Powder Coated Aluminium
  • Yes
  • No

Auf meine Wunschliste

Technische Daten

Durchmesser2200 mm
Höhe (ohne Ausrüstung)3480 mm
Volumen3335 l
Entwurf560 mm
Freibord790 mm
Mast2054 mm
Gewicht mit Ballast720 kg
Untertauchen33 kg/cm
Sichtbarer Bereich3.4 m² - 4.3 m² (High visibility)
Brennebene3065 mm with Carmanah M650, 3115 mm with Carmanah M850, 3220 mm with Carmanah M860

Mehr Infos

HIGH QUALITY MATERIALS

Structure, Lifting and Mooring Points: S235 galvanized steel
Float and mast: UV-stabilized Polyethylene medium density
Foam: Polyurethane 40 kg/m³
Colors:Pigments matching IALA specifications directly integrated into the polyethylene during rotational moulding for no painting ever.
Ballasts: Cast Iron
Topmark (optional): Powder coated aluminium
Radar Reflector: Aluminium 5083/5086 marine grade
Eco friendly: Recyclable polyethylene. Heavy metal free. No ecological damages

RANGE OF USE

Current: Up to 6 knots
Mooring chain (recommended): Open long link chains 5xD ND30 and ND35

RECOMMENDED LANTERNS

All models are LED self-containing lanterns, manufactured by Carmanah (SABIK).

Available in Red, Green, White and Yellow according to the specification of each buoy.

M650H: UP TO 4 NAUTICAL MILES

The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more

Connect to Carmarah website for all technical specifications & complete documentation

M850 60X WIDE: OVER 7 NM (3-6 NM ALL COLOURS)

This high-efficiency, compact lantern is suitable for use in most solar locations. The M850 is over 30% more efficient than previous generation lanterns and is capable of an average 3 to 6 NM range with the ability to reach over 7 NM.

Connect to Carmarah website for all technical specifications & complete documentation

M860 96E WIDE : UP TO 10 NM (3-6 NM ALL COLOURS)

The M860 LED Marine Lantern is a premium, full-featured lantern suitable for achieving longer ranges in challenging insolation locations. Average range is 3 to 6 NM with the ability to reach up to 10 NM.

Connect to Carmarah website for all technical specifications & complete documentation

INFORMATION ON TOPMARKS

Powder coated aluminium topmarks
FLC2200 topmarks are in Powder Coated Aluminium

INFORMATION ON MOORING DESIGNS

Calculate your mooring line designs with the CALMAR software.

A 3 steps, easy to use tools for the mooring lines of all FullOceans buoys.

LEARN MORE
