FLC2600 lateral marine Offshore buoy

New product

For highly exposed conditions and off-shore projects, the FLC2600 lateral buoy is ready to serve. The FLC2600 is designed with a 4 independent parts float and an aluminum mast and is capable to integrate solar pannels, high range marine lanterns, AIS ...

More details

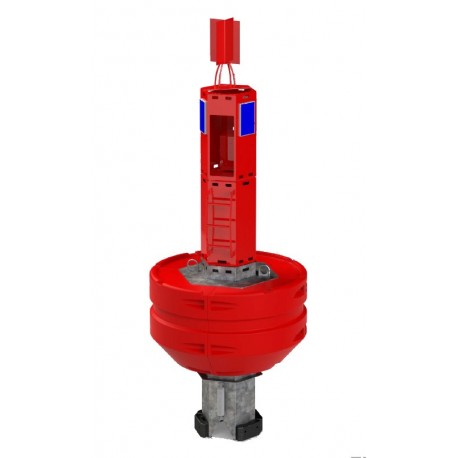

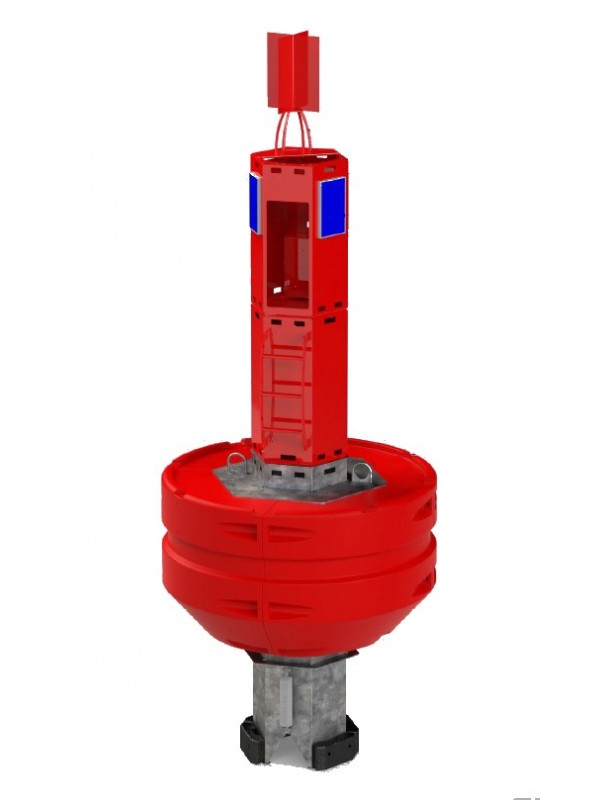

  • Starboard
  • Port

Add to wishlist

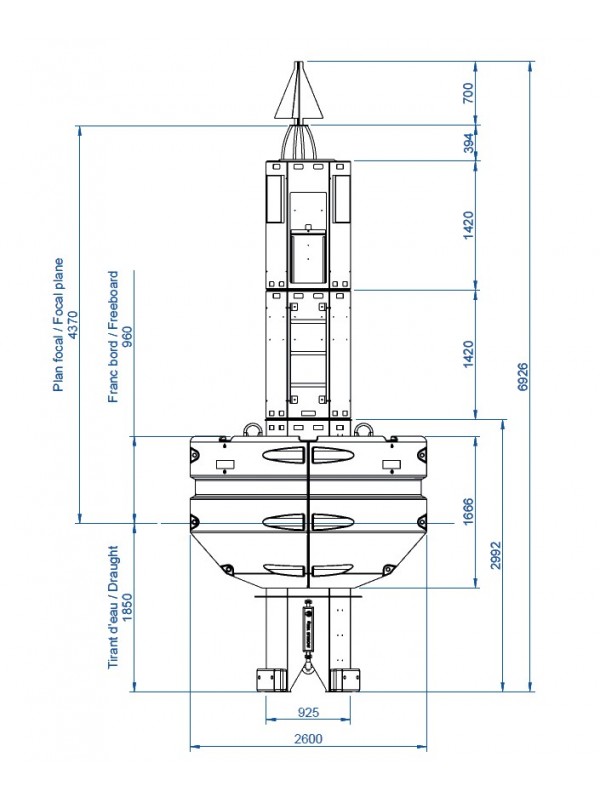

Data sheet

Diameter2600
Volume5900
Draught1850
Freeboard960
Overall Height (with topmark)6940
Mast2834
Weight with ballast1814
Visible area6.4
Focal plane4370

More info

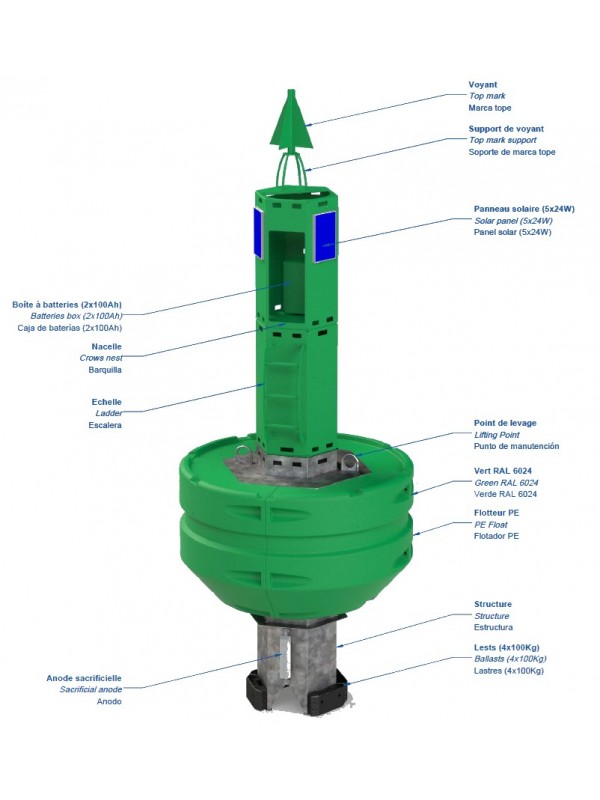

HIGH-QUALITY MATERIALS

Structure, Lifting and Mooring Points: S235 galvanized steel
Float: 4 independent floats UV-stabilized Polyethylene medium-density UV16 grade, thickness 22mm
Mast: Aluminium 5083/5086 marine grade
Colors: Pigments matching IALA specifications directly integrated into the polyethylene during rotational molding for no painting ever.
Ballasts: Cast Iron
Topmark: Aluminium 5083/5086 marine grade
Radar Reflector: Aluminium 5083/5086 marine grade
Eco-friendly: Recyclable polyethylene. Heavy metal-free. No ecological damages

Also available with simplified mast and polyethylene structure for a cost effective project.
