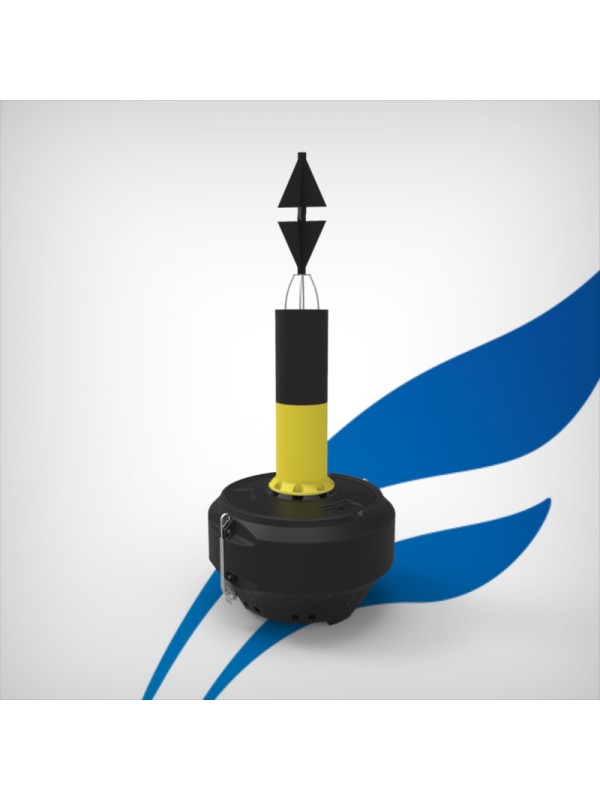

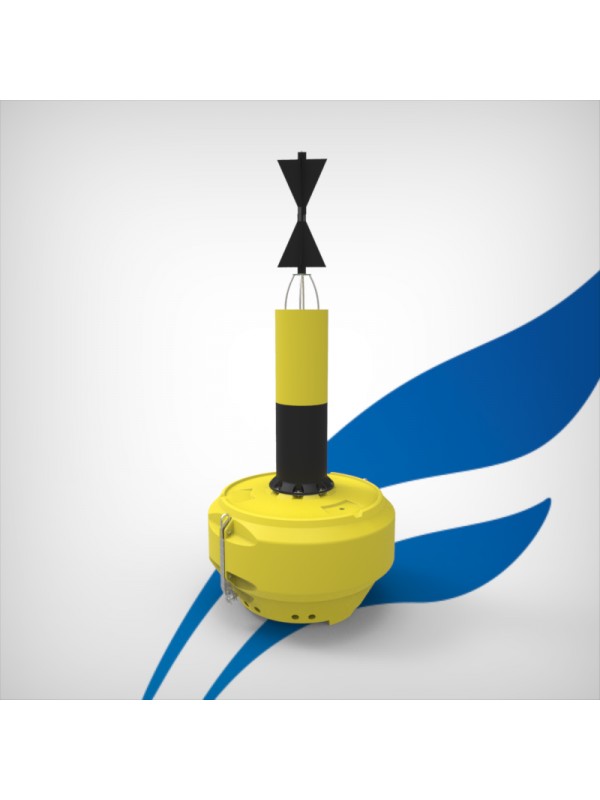

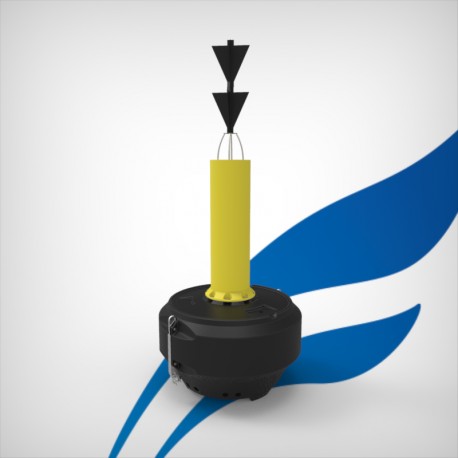

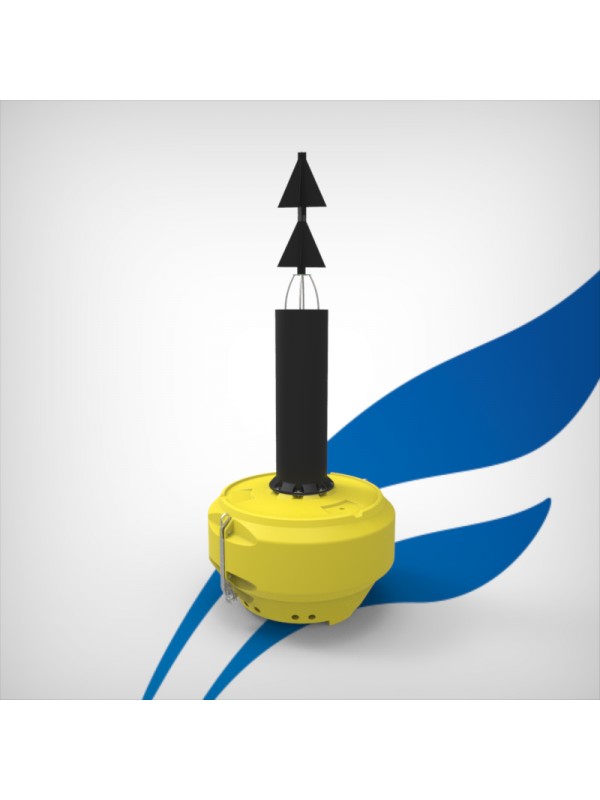

FLC2200 Cardinal buoy
For the most exposed conditions the FLC2200 cardinal buoy will meet the requirements of most projects. The FLC2200 characteristics and prices will surprise the most demanding experts and purchaser: polyethylene shell, foam, radar reflector, 2 galvanized steel lifting and mooring points, cast iron ballasts, removable mast, topmark.

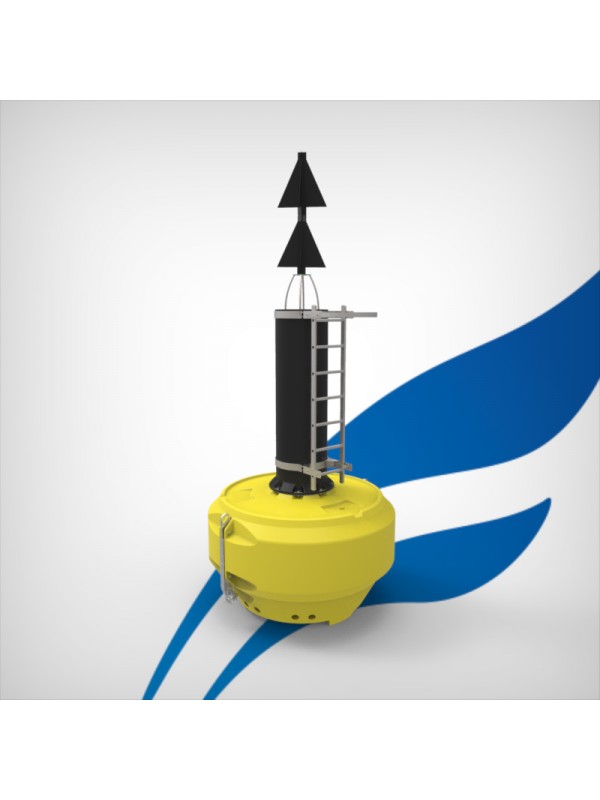

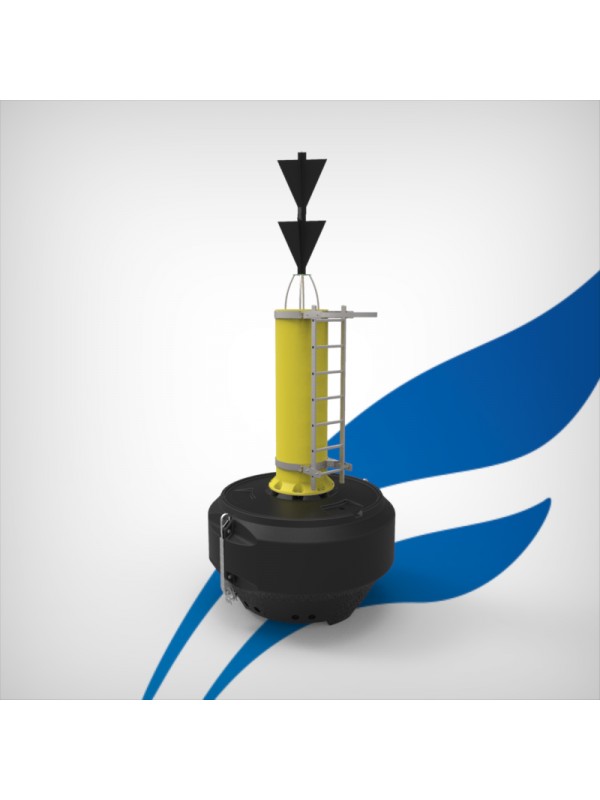

Optional equipment: Lanterns, service ladder
HIGH QUALITY MATERIALS
Structure, Lifting and Mooring Points: S235 galvanized steel
Float and mast: UV-stabilized Polyethylene medium density
Foam: Polyurethane 40 kg/m³
Colors:Pigments matching IALA specifications directly integrated into the polyethylene during rotational moulding for no painting ever.
Ballasts: Cast Iron
Topmark: Powder coated aluminium
Radar Reflector: Aluminium 5083/5086 marine grade
Eco friendly: Recyclable polyethylene. Heavy metal free. No ecological damages
RANGE OF USE
Current: Up to 6 knots
Mooring chain (recommended): Open long link chains 5xD ND30 and ND35
RECOMMENDED LANTERNS
All models are LED self-containing lanterns, manufactured by Carmanah (SABIK).
Available in Red, Green, White and Yellow according to the specification of each buoy.
 |
M650H: UP TO 4 NAUTICAL MILES The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more Connect to Carmarah website for all technical specifications & complete documentation |
 |
M850 60X WIDE: OVER 7 NM (3-6 NM ALL COLOURS) This high-efficiency, compact lantern is suitable for use in most solar locations. The M850 is over 30% more efficient than previous generation lanterns and is capable of an average 3 to 6 NM range with the ability to reach over 7 NM. Connect to Carmarah website for all technical specifications & complete documentation |
 |
M860 96E WIDE : UP TO 10 NM (3-6 NM ALL COLOURS) The M860 LED Marine Lantern is a premium, full-featured lantern suitable for achieving longer ranges in challenging insolation locations. Average range is 3 to 6 NM with the ability to reach up to 10 NM. Connect to Carmarah website for all technical specifications & complete documentation |
INFORMATION ON TOPMARKS
 |
| FLC2200 topmarks are in Powder Coated Aluminium |
INFORMATION ON MOORING DESIGNS
 |
Calculate your mooring line designs with the CALMAR software. A 3 steps, easy to use tools for the mooring lines of all FullOceans buoys. |
FLC2200-CARD-SOUTH
Data sheet
- Diameter
- 2200 mm
- Height (without equipment)
- 3480 mm
- Volume
- 3335 l
- Draught
- 560 mm
- Freeboard
- 790 mm
- Mast
- 2054 mm
- Weight with ballast
- 720 kg
- Submergence
- 33 kg/cm
- Visible area
- 3,8 m²
- Focal plane
- 3065 mm with Carmanah M650, 3115 mm with Carmanah M850, 3220 mm with Carmanah M860
