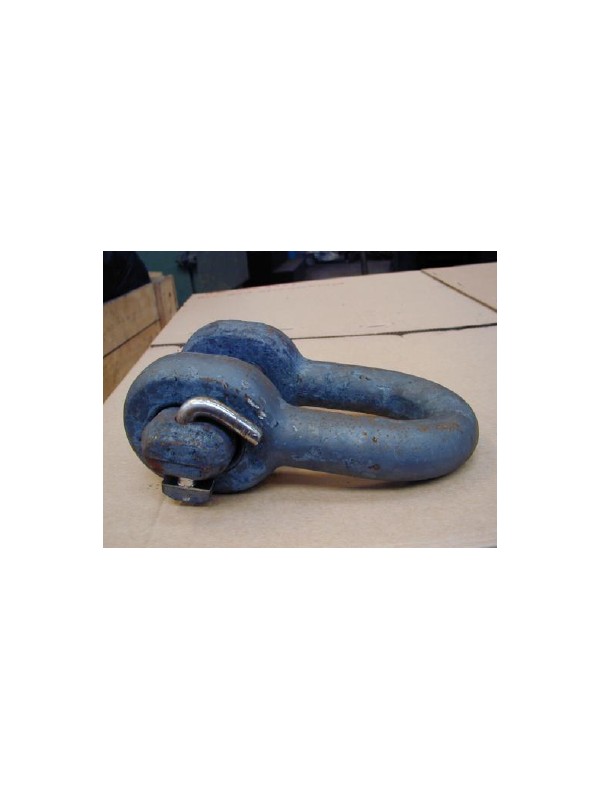

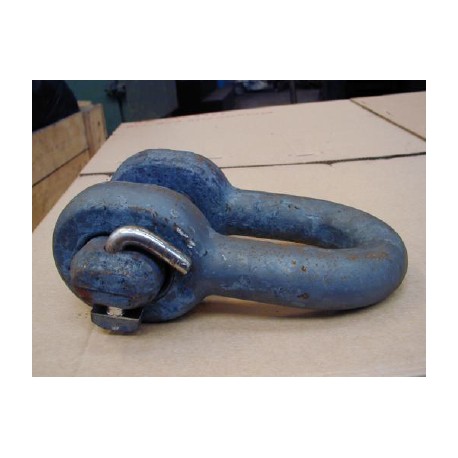

Buoys shackles for ND 16 mm chain - Special marking

FDSLUIT16

Neuer Artikel

Superior quality shackles designed for long term mooring of marking buoys.

Shackles for 16 mm nominal diameter mooring chain.

Body diameter (mm): 22
Inside height (mm): 85
Inside width (mm): 45
Weight (kg): 2

Mehr Infos

Auf meine Wunschliste

Mehr Infos

Superior quality shackles designed for long term mooring of marking buoys.

Shackles for 16 mm nominal diameter mooring buoys.

Specially designed for a very good resistance to wear and corrosion in hard sea conditions, the renforced body and axle are all forged in the same manganese alloy steel material ( din 17115)

The different parts are mounted with no play to have along life in the sea.

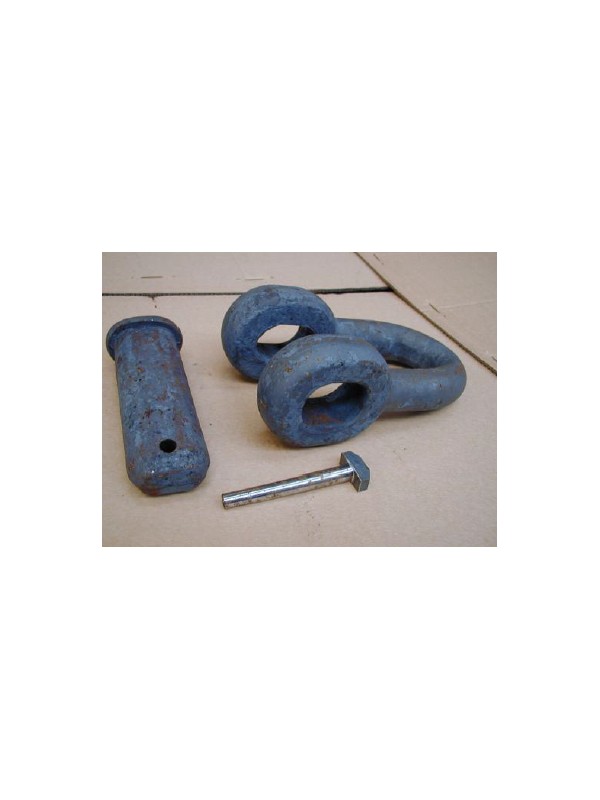

The big conical pin has a strong diameter and a “T” form for the easy handling ( with gloves).

The visual inspection of the shackle is very easy due to the external position of the pin
For the mounting / need a hammer to fit in axle and bend the pin
For dismantling / need to cut the pin near the axle and to take it off with a hammer.

Body diameter (mm): 22
Inside height (mm): 85
Inside width (mm): 45
Weight (kg): 2

Zubehör

    Download

    Technical specifications

    Mooring Chains & Accessories - Technical specifications

    Download (115.44k)
